GSVM -12 (V)

GSVM-12 Switch Features
1.Three-phase split design eliminates the risk of inter-phase short- circuitfaults.
2.The insulation surface uses a unique arc-sprayed zinc process,achieving full grounding, full shielding, and a touchable surface.
3.Carbon fiber shielding layer balances electric field distribution and improves heat dissipation efficiency.
4.The switch configuration adopts an upward isolation scheme, fully compliant with SGCC standardized specifications.
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Operating Conditions

    GSVM-12（V)
    Altitude
    ≤2000m

    Temperature

    Maximum
    55℃
    Minimum
    -40℃
    Average within 24h
    ≤35℃
    Humidity
    Average relative humidity within 24h
    ≤95%
    Monthly average relative humidity
    ≤90%
    Environment
    Surrounding air free of explosive, corrosive gases，installation site free of severe vibration and impact



    Notes

    Please contact us for requirements exceeding the above conditions.
    GSVM-12 Series

    The GSVM series solid-insulated switch complies with the Standardized Design Scheme for10kV Ring Main Units (RMUs), featuring core design innovations:

    1. Segregated Three-Phase Structure:

    Each phase's conductive path and insulation are independently    encapsulated, significantlyenhancing interphase dielectric strength
    and effectively preventing phase-to-phase shortcircuit faults.

    2. Advanced Surface Treatment Technology:

    A proprietary arc zinc fusion process is applied to the epoxy insulationsurface of core units,creating a uniform, dense metallic zinc coating. Thisachieves:
    1.Full shielding & Grounding Design: Forms an equipotential
    grounding shield layer to equalize electric field distribution and
    suppress partial discharge (PD).
    2.Safe-to-Touch Surface Characteristics: Ensures personnel safety
    during operation.
    3.Enhanced Surface Protection: Metallurgically bonded zinc-epoxy
    composite forms arobust, dense insulation structure.

    3. Superior Environmental Resilience:

    The solid insulation combined with zinc shielding effectively withstands insulation degradationcaused by contamination, humidity, condensation,and other harsh environmental factors.Collectively, these designs ensure exceptional dielectric reliability, provide robustassurance for long-term stable operation, and deliver significantly elevated overall safetyperformance.
    Primary Circuit

    Circuit Breaker

    • Employs vacuum arc-extinguishingtechnology to ensure high breakingcapacity and long electrical life.
    • The transmission system's shaft supportextensively uses needle roller bearingdesign, ensuring flexible rotation and hightransmission efficiency.

    Disconnector

    • Three-position design theoreticallyeliminates the occurrence of misoperations.
    • Air distance between the isolation bladeand grounding contact/stator contact is125mm, ensuring insulation reliability.
    • High-performance disc springs ensurestability of contact pressure.
    • Contact design favorable for closing shape,grounding closing speed ≥4.2m/s, ensuringgrounding closing reliability

    Operating Mechanism
    Circuit Breaker Mechanism

    • Five-link mechanism transmission designwith reclosing function.
    • The planetary deceleration DC permanentmagnet motor has a small volume, stableoperation and an amazing transmission
    efficiency of about 3% energy loss.
    • Components like the main switch's motor,auxiliary switch, release, and limit switchare readily replaceable.
    • Dual-spring precision transmission designwith reclosing function.
    • All transmission components are made of high-quality quenched and tempered steeland hardened steel,ensuring a long servicelife.
    • Core transmission uses needle rollerbearing design, offering strong impactresistance, high load capacity, and lowfriction.

    Disconnector Mechanism

    • Isolation mechanism uses a torsion - spring - based quick - acting mechanism, achieving the three positions "Close, Open, Ground"(standard three - position states fordisconnectors) through torsion springforward/reverse rotation.
    • Rigid bidirectional mechanical limit designat the isolation position ensures precisepositioning of the isolation position(Open/Close states), preventing displacement due to external force.
    • Rigid mechanical interlocking for five -prevention functions reliably preventsmisoperation.



    Electrical Schematic Diagrams


    Equipment No
    Equipment Name
    Quantity
    -DL
    Circuit Breaker
    		 1
    HQ
    Circuit Breaker Closing Coil
    		 1
    TQ
    Circuit Breaker Tripping Coil
    		 1
    M1
    Circuit Breaker Spring Energy - storage Motor
    		1
    CK1
    Disconnector Travel Switch
    		 1
    CK2
    Earthing Switch Travel Switch
    		 1
    CK3
    Spring Energized Travel Switch
    		 1
    S1-1
    Disconnector Travel Switch
    		 1
    S1-2
    Disconnector Travel Switch
    		 1
    S1-3
    Disconnector Travel Switch
    		 1
    S3-1
    Earthing Switch Travel Switch
    		 1
    S3-2
    Earthing Switch Travel Switch
    		 1
    S3-3
    Earthing Switch Travel Switch
    		 1
    EL1
    Light
    		 1

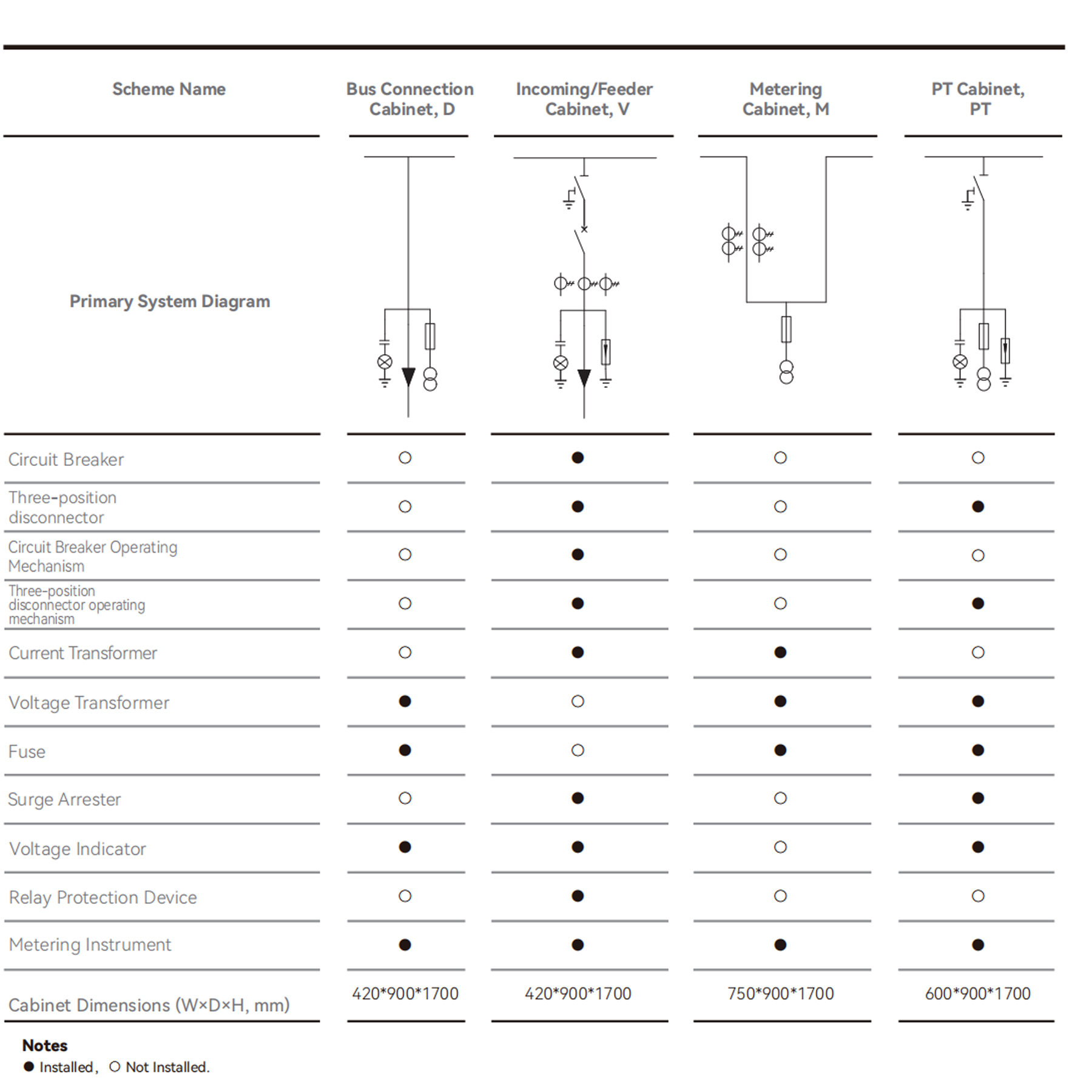

    Typical Application Schemes

    GSVM-12 Series Primary Main Wiring Scheme



    Typical Application Schemes
